Products for Galvanic


The Gold City The Gold City has in production the followings products for the galvanic sector :







VOLT AND AMPERE DISPLAY 48x48

Characteristics
The indicators of Volt and Ampere in format to 48x48 they are display devices to 3 figures with possibility to choose, during the order, the decimal figure and the fondoscala (Max. 9.99 99.9 999). For the indicators of ampere the signal of applicable entry can directly be chosen to the shunt (60mV).
The panels of plexiglass can have the indication of V or To.
They are used in the one who settles things up of tension / current for galvanic baths.

Back to up

VOLT AND AMPERE DISPLAY 48x96

Characteristics
The indicators of Volt and Ampere in formed to 48x48 they are display devices to 3 figures with possibility to choose, during the order, the decimal figure and the fondoscala (Max. 9.99 99.9 999). For the indicators of ampere the signal of applicable entry can directly be chosen to the shunt (60mV).
The panels of plexiglass can have the indication of V or To.
They are used in the one who settles things up of tension / current for galvanic baths.

Back to up

VOLT AND AMPERE DISPLAY 48x96

  • Indicators of Volt  and Ampere BA0001
  • Indicators of Volt and Ampere with short-circuit control BA0002

Characteristics
The tool manages the visualization of two analogical entries. An entry for the reading of the tension (F.S.99,9V) and an entry for the reading of the tide (F.S.60mV). The employed microprocessor allows to digitally set the values to visualize and the parameters of established of the data. The tool allows the memorization of the maximum woodpeckers reached during the workmanship.

The BA0002 manages two exits for the signaling of the short-circuit

They are used in the one who settles things up of tension / current for galvanic baths.

Back to up



AMPERMINUTAMETERS 48x96

  • Amperminutameters B30001 (francese)
  • Amperminutameters with RS232c serial  B60001
  • Amperminutameters with RS485 serial  B30002
  • Double counter  B30010
  • Amperminutameters BA0003 (low cost)
  • Amperminutameters BA0004 (low cost)

Characteristics
The amperminutametro is a tool that connected to a signal of survey of the tide of a galvanic bath it determines the consumption of it. The calculation of the consumption, managed from of the totalizators and of the partial counters, you/he/she can be reported to the staircase of the amperes / minute or ampere / now through a programmable divisor of the tool. They are present of the exits to use for commanding the pomps dosatrici or the qualification to the operation of the one who settles things up of the bath.
The amperminutametris endowed with seriale of communication allow the interfacciamento with the personal computer.

Back to up

AMPERMINUTAMETERS 72X144

  • Amperminutameters with automatic contol for teeth plant C20006
  • Amperminutameters with automatic bath control and serial 485 C20007

  • Six tickcounter  with preset and output with timer . Used for summation amperminutameters) C20008

Characteristics
The amperminutameters is a tool that connected to a signal of survey of the tide of a galvanic bath it determines the consumption of it. The calculation of the consumption, managed from of the totalizators and of the partial counters, you/he/she can be reported to the staircase of the amperes / minute or ampere / now through a programmable divisor of the tool. They are present of the exits to use for commanding the pomps dosatrici or the qualification to the operation of the one who settles things up of the bath.
The amperminutameters endowed with seriale of communication allow the interfacciamento with the personal computer.
The amperminutameters with automatic (I check PID) regulation checks and manages the tide and tension of the galvanic bath with an analogical exit that regulates the one who settles things up of tide.

Back to up

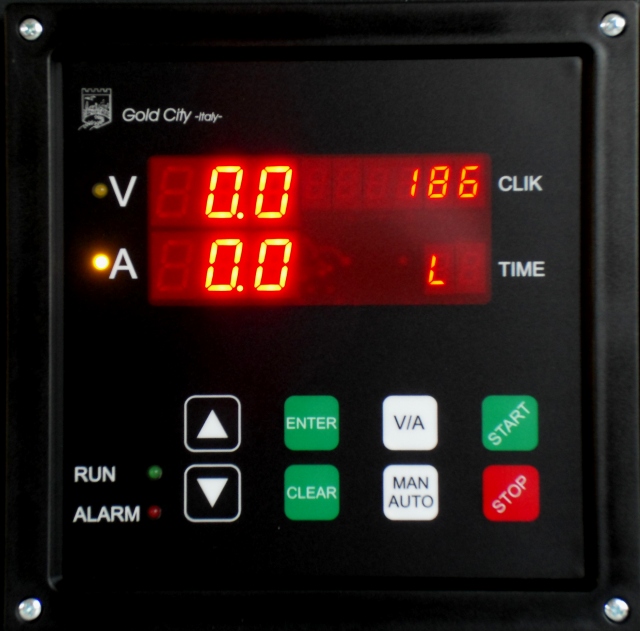

REMOTABLE KEYBOARDS FOR RECTIFIER,  amperminutametErS, WITH TIME WORKS, TICKS OR RAMP

Characteristics

The keyboard allows to acquire the signals of Volt and present Ampere on the galvanic bath and to manage an analogical exit that connected to the power of an one who settles things up allows to digitally check its set - planned point. On the keyboard it is possible to shape 5 entries for possible further commands.The keyboard has to its inside an amperminutametro with 2 partial contascattis that manage 2 exits. And' present also a totalizator

N30701

Back to up

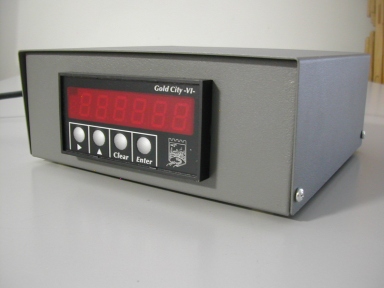

AMPERMINUTAMETERS WITH CONTAINERS

Amperminutameters B35001

Caracteristics:
Container dimension 100x200x180 with plate in painted steel.
2 exits to relay for the command of dosatori

Back to up

 RECTIFIER 12VOLT 50-250 AMPERE

Rectifier SXXXX

Caracteristics:
Rectifier switching in container with plate in painted steel


Static exits for the command of optional dosator

Back to up



SWITCHING RECTIFIER

Rectifier QXXXX

Caracteristics:
Rectifier switching in container with plate in painted steel and panel you command remotabile.


Static exits for the command of optional dosator

Back to up



DIGITAL RECTIFIER 10A 12V / 2A 40V

Rectifier R20003

Caracteristics:
The rectifier can operate at voltage or current priorities. It can work in a "free" to "time" or "click".
Adjustments for low power can operate in a mode that allows a more stable and precise adjustment. In the
current priority is possible to limit the voltage supplied.
It 'ran a tote and a unit counter part. Option setting ramps work.

Option can be enabled with PT100 temperature control and power unit for a heater 220Volt / 3AMax.

Torna all'inizio



DIGITAL RECTIFIER 12V / 20A o 30A

Rectifier R30001

Caracteristics:
The rectifier can operate at voltage or current priorities. It can work in a "free" to "time" or "click".
It can a tote and a unit counter part. Option setting ramps work.

Torna all'inizio



CONTROL PLANTS

Back to up

OTHER PRODUCTS

Back to up
